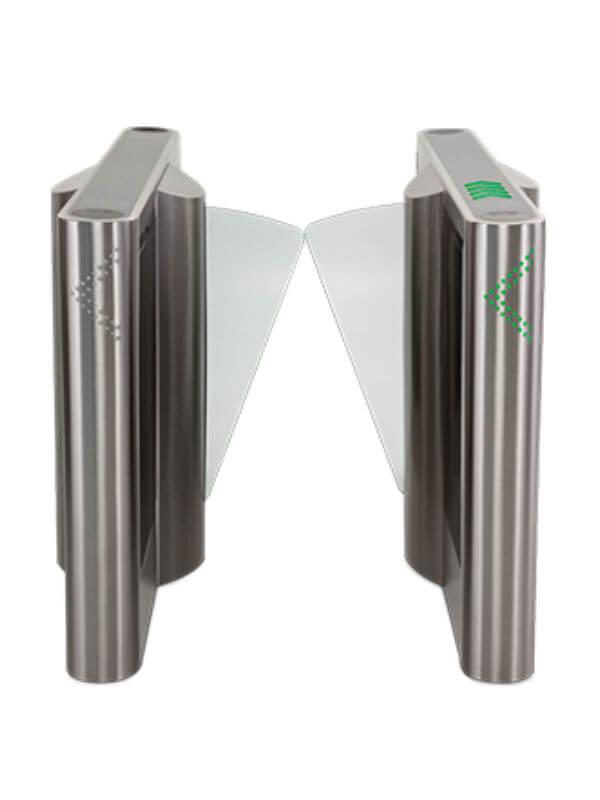

dGate AWAccess Gate

Motorized gates for sophisticated environments, combining security, robustness and flexibility.

AISI 304 brushed stainless steel case with 2 mm plates.
Angel gates in 12-mm thick tempered glass or polycarbonate.
Side doors with anti-theft locks in the inner side, providing easy access for maintenance and settings.
A dedicated microprocessor controller allow gate acceleration and deceleration, optimizing flow.
High-performance dPower motor opens gate in 0.7 seconds, providing silent control with encoder for accurate positioning.
Audio and visual alarm indicator.
Detection system with 8 photoemission sensors to detect passage and 2 additional security sensors.
Anti-panic system with gates that open when an obstacle is detected.
Anti-fraud system emits an audio signal and detects piggybackers, users in opposite direction and attempts at unvalidated passage.
Controls direction of passage, allowing two-way operation, and may be set in either one-way or two-way mode.
Automatic opening in case of power emergency or an emergency alarm is activated.
Large internal space allows integration with wide variety of existing off-the-shelf access controllers.
Full range power source (90 to 240 VAC).
25 W nominal power consumption for 500 mm closed gates.
Top pictogram with high-brightness RGB LED lights with individual brightness control by color.
Front pictogram with two-color LED lights with individual brightness control by color.
Dedicated microcontroller for motor control.
High durability motor.
Gate positioning control monitored by 10-bit magnetic encoder.
Passage control with 10 infrared sensors.

reduction of transport and supply of values

Less movement of people in the self-service room

Equipment with operating
autonomy

Equipment can be configured according to the needs of each client
