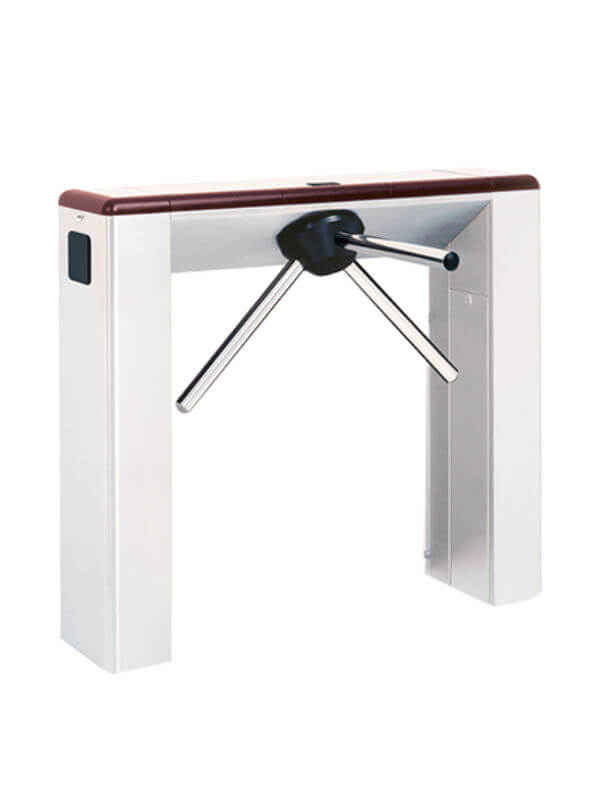

MasterCatrax Turnstile

Catrax Master was developed for high-volume flows. The reinforced structure, combined with finishing accessories, provides a wide array of settings to adjust the product to the environment where it will be deployed.

Key Features

  • Turnstile arms at 90° provide greater comfort during the passage.
  • Rounded corners prevent accidents for users.
  • Large internal space allows easy integration with other access control equipment.
  • Access to internal modules using anti-theft bolts, without exposed screws.
  • Electromagnet and optical sensor-activated turnstile locks allows for lower mechanical wear and tear and longer service life.
  • Support for integration board enables easy maintenance.
  • Customizable lateral and top pictograms indicating permission and direction of access.
  • Roller bearing mechanisms with two bearing supports extend service life.
  • Carbon steel material with epoxy powder coating or AISI 304 brushed stainless steel.
  • Larger space in the top cover to deploy incoming and outgoing scanners, allowing for increased flow due to the possibility of pre-validation of user tickets.
  • Electric Mechanical Turnstile or Motorized Turnstile.

Optional Features

  • Electronic passage counter.
  • Anti-panic drop arm.
  • Slot for barcode scanner or magnetic card reader.
  • Ticket safe.

Control Options

  • MCA – TCP/IP access control board.
  • Slotted barcode scanner for badges.
  • Multibeam barcode scanner – ticket proximity.
  • 2D code scanner.
  • Wiegand/Abatrack proximity reader – HID/Indala/Acura.
  • Mifare reader.
  • Biometric reader.
I want this Product
Economy

reduction of transport and supply of values

Security

Less movement of people in the self-service room

Availablity

Equipment with operating
autonomy

Flexibility

Equipment can be configured according to the needs of each client

Other Catrax Turnstile Option(s)

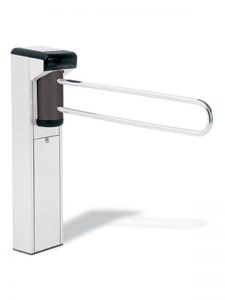

Clip
