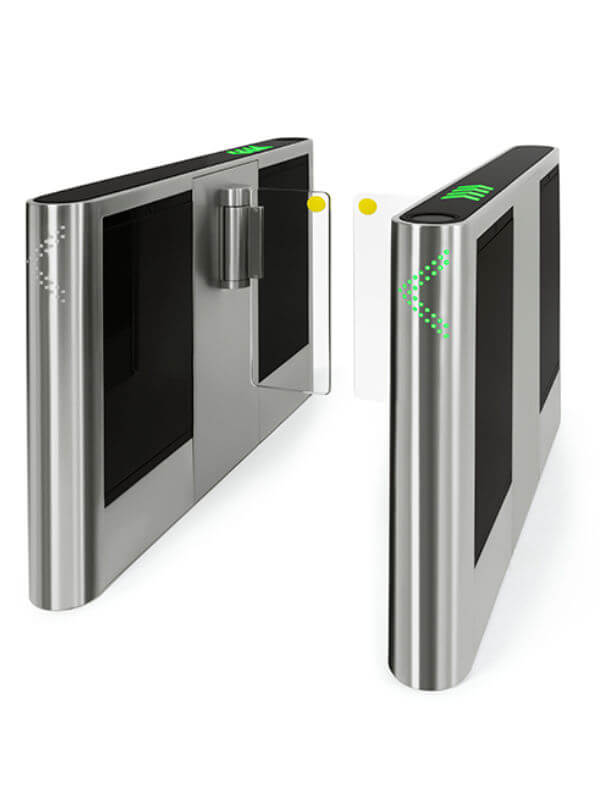

dGateSwing Gate

Access control equipment with pivot doors and flexible configuration. The equipment provides a comfortable passage, with door motions directing flow according to the direction of the opening.

Key Features

  • AISI 304 brushed stainless steel case with 0.079 inch (2 mm) plates.
  • Swing gates in 0.47-inch (12 mm) thick acrylic or polycarbonate.
  • Internal side doors with lock and key provide easy access for maintenance and settings.
  • A dedicated microcomputer controls gate acceleration and deceleration, optimizing flow.
  • Silent high-performance motor dPower.
  • Feedback allows for accurate positioning.
  • Audio and visual alarm indicators.
  • Safety and security: gates power down when an obstacle is detected.
  • Anti Fraud detection system with sound alarm for unauthorized access.
  • Direction control allows two-way access.
  • Anti-panic system: in case of emergency (no power), gates power down to ensure free flow for all users.
  • Large internal space allows integration of access controllers.
  • Full range power source (90 to 240 VAC).
  • Power consumption: 25 W (stand-by) and 300 W (working).
  • Top pictogram with high-brightness RGB LED lights with individual brightness control by color.
  • Front pictogram with two-color LED lights with individual brightness control by color.
  • Passage control with 10 infrared sensors.
  • Gates can be set for openings of up to 1.10 m.

Optional Features

  • Ticket safe.

Control Options

  • MCA – TCP/IP access control board.
  • Slotted barcode scanner for badges.
  • Multibeam barcode scanner – ticket proximity.
  • 2D code scanner.
  • Wiegand/Abatrack proximity reader – HID/Indala/Acura.
  • Mifare reader.
  • Biometric reader.
I want this Product
Economy

reduction of transport and supply of values

Security

Less movement of people in the self-service room

Availablity

Equipment with operating
autonomy

Flexibility

Equipment can be configured according to the needs of each client
